Product Description:
Ceiling shower 6+ sprays with light
Standard Specification:

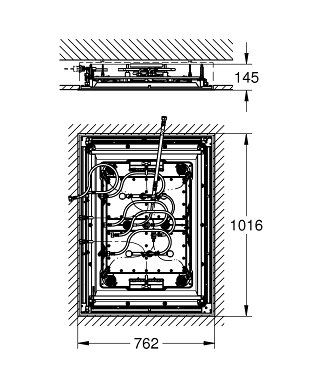

1016 mm (width) x 762 mm (height) x 145 mm (depth)
material: metal
minimum flow rate 25 l/min
min. recommended pressure 3.0 bar
1 x AquaCurtain
1 x Pure XL spray
1 x 2 Drizzle sprays (mist spray)
2 x GROHE PureRain spray 400 x 190 mm (separately
controlled)
2 x XL Waterfall (separately controlled)
1 x 4 Bokoma Spray with adjustment angle 20° and
combinations
full spectrum LED: soft light with changing rainbow colours
individually adjustable: permanent lighting with colour
selection
power supply for light 12 V DC
CE approved
SpeedClean anti-lime system
GROHE DreamSpray perfect spray pattern
GROHE StarLight finish
requires rough-in set (26 376 001), F-digital Deluxe base unit
box (26 374 000), Bluetooth unit (36 371 000) and various
cable connections – all to be ordered separately due to
installation situation.
The ceiling construction must be appropriate for the static
requirement of the product (total product weight > 70 kg).
Ceiling shower has to be controlled by 8 outlets + 1 hand
shower outlet and the performance of the waste must be of
sufficient size (> 100 l/min). For detailed planning please see
separate planning & installation guide before start.
recommendation: configuration with Grohtherm SmartControl
3 x Grohtherm SmartControl (29 126 000)
3 x GROHE Rapido SmartBox (35 600 000)
1 x Euphoria Cube Stick wall holder set 1 spray (26 405 000)
this product contains built-in LED lamps, which cannot
be changed: energy efficiency class: A++
ARTICLE NO. 26373001
