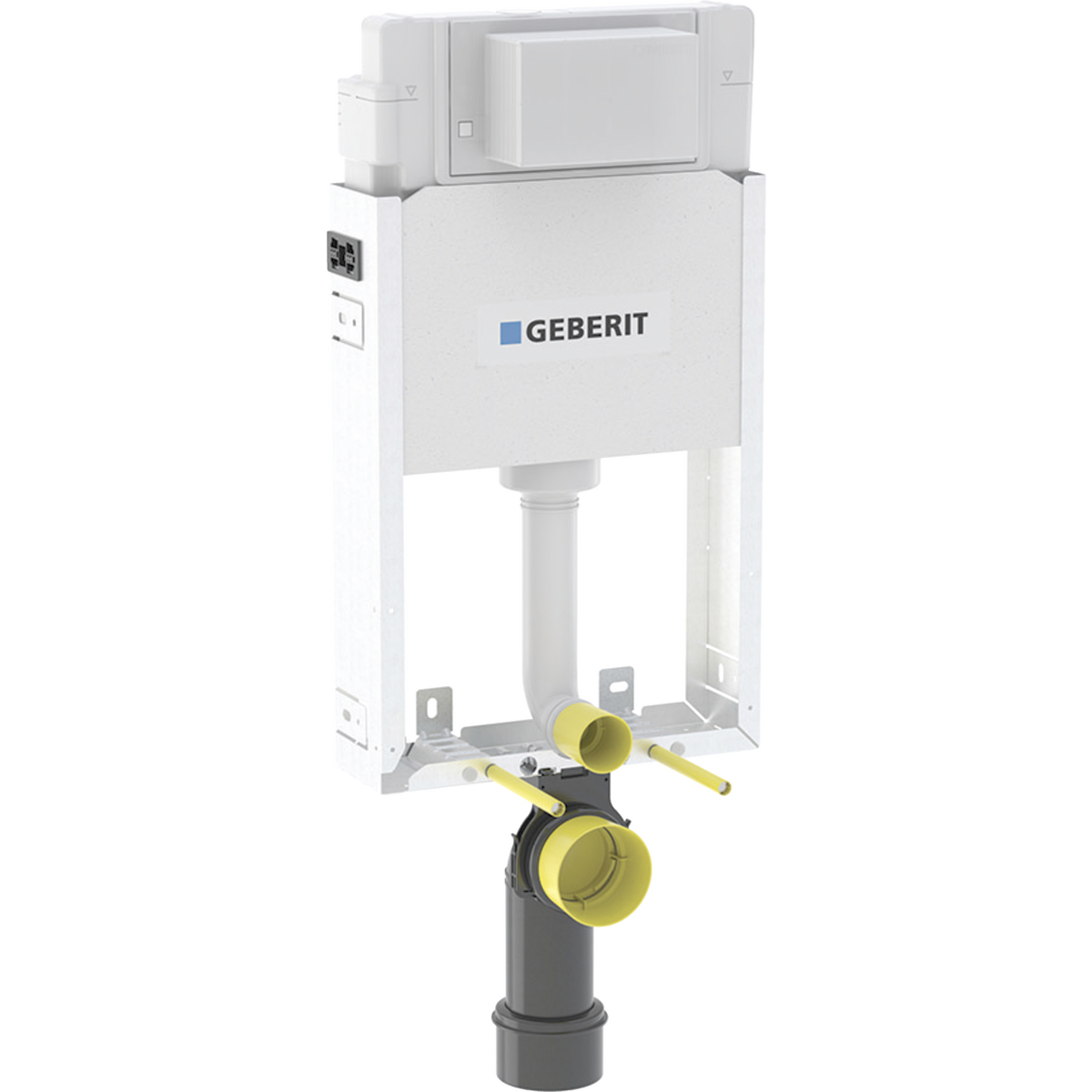

Geberit Kombifix element for wall-hung WC, 106 cm, with Alpha concealed cistern 12 cm
APPLICATION PURPOSES
• For masonry walls
• For installation in part or room-height prewall installations
• For wall-hung WCs with connection dimensions in accordance with EN 33:2011
• For dual flush
CHARACTERISTICS
• Zinc-plated mounting frame
• Mounting frame with four fastening brackets
• Fastening for connection bend can be mounted without tools from front
• Concealed cistern with front actuation
• Concealed cistern, fully insulated against condensation
• Immediate post flush possible with factory setting
• Water supply connection on the rear or top centre
• Protection box for service opening can be cut to length
TECHNICAL DATA
Flow pressure 0.1–10 bar
Flush volume, factory setting 6 / 3 l
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l
Flush volume small, adjustment range 2–4 l
Product material Steel
Height-adjustable No
SCOPE OF DELIVERY
• Water supply connection unit R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring
• Protection box for service opening
• Connection set for WC, ø 90 mm
• Connection bend made of PE-HD, ø 90 mm
• Adapter socket made of PE-HD, ø 90 / 110 mm
• 2 protection plugs
• 2 threaded rods M12
• Fastening material
ARTICLE NO.: 110.223.00.2
